16 recirculation pumps and 9 return sludge pumps for WWTP in Berlin

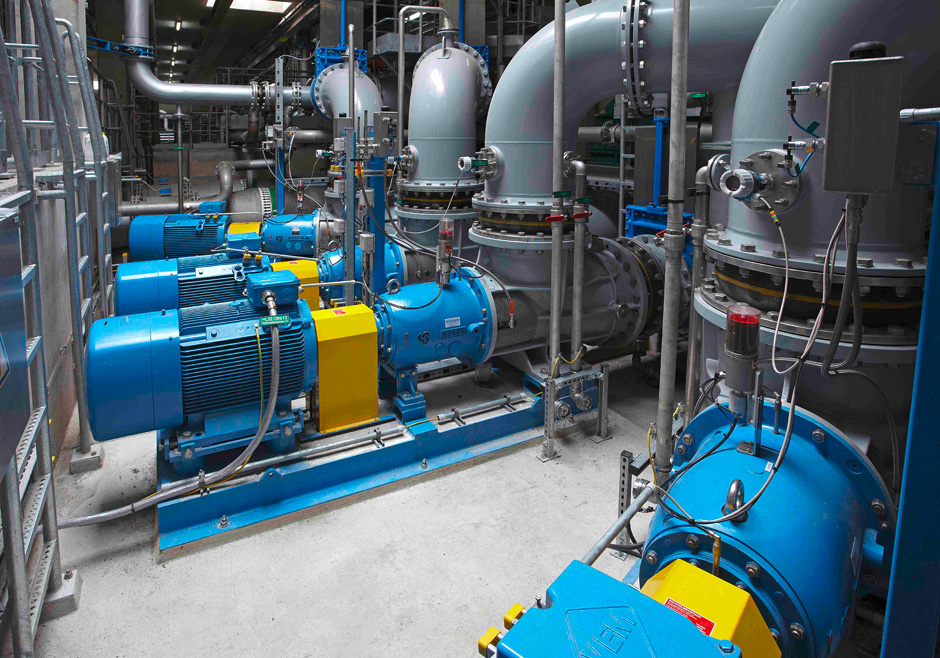

As part of a renovation program, the waterworks of Berlin (BWB) replace the tank lines 6-8 at the wastewater treatment plant of Waßmannsdorf (Berlin Schönefeld). The core of the building improvements are 6 elbow pumps type RPGA 601 LB6.1, delivered by Schachtbau Nordhausen. Per each tank line are two of these Egger axial pumps in diameter DN 600 in use which replace one old vertical pump DN 700. The elbow pumps with their fiber-repellent wastewater profile are successfully in use since mid-July 2012. The operational reliability of the plant could be increased significantly by the splitting the recirculation current through two pumps. Each of the frequency controlled Egger pumps transports 1100-3200 m3/h activated sludge at a discharge head from 0.9 to 4.3 m. The casing of the pump is made of cast iron GGG40 with a Rilsan® coating. The propellers are made of stainless steel 1.4404.

In the following stages of expansion, the tanks 9 and 12, 10 and 11 as well as the tank 5 will be replaced in the next few years. The pumping stations are also installed with a total of 10 additional RPGA 601 LB6.1 in identical execution. More information on the new recirculation pumping station under:
Download recirculation pumping information

Furthermore, 9 vertical Egger Process Pumps of type EOS 8-250 V6 for return sludge are in operation. With the following renovation stages, 15 more identical pumps will assure the handling of the return sludge at the WWTP of Waßmannsdorf.

Since 15 years, 24 Iris® diaphragm control valves of sizes DN 200 and 250 assure an economic and stable regulation of the process air of the aeration tank of this plant.

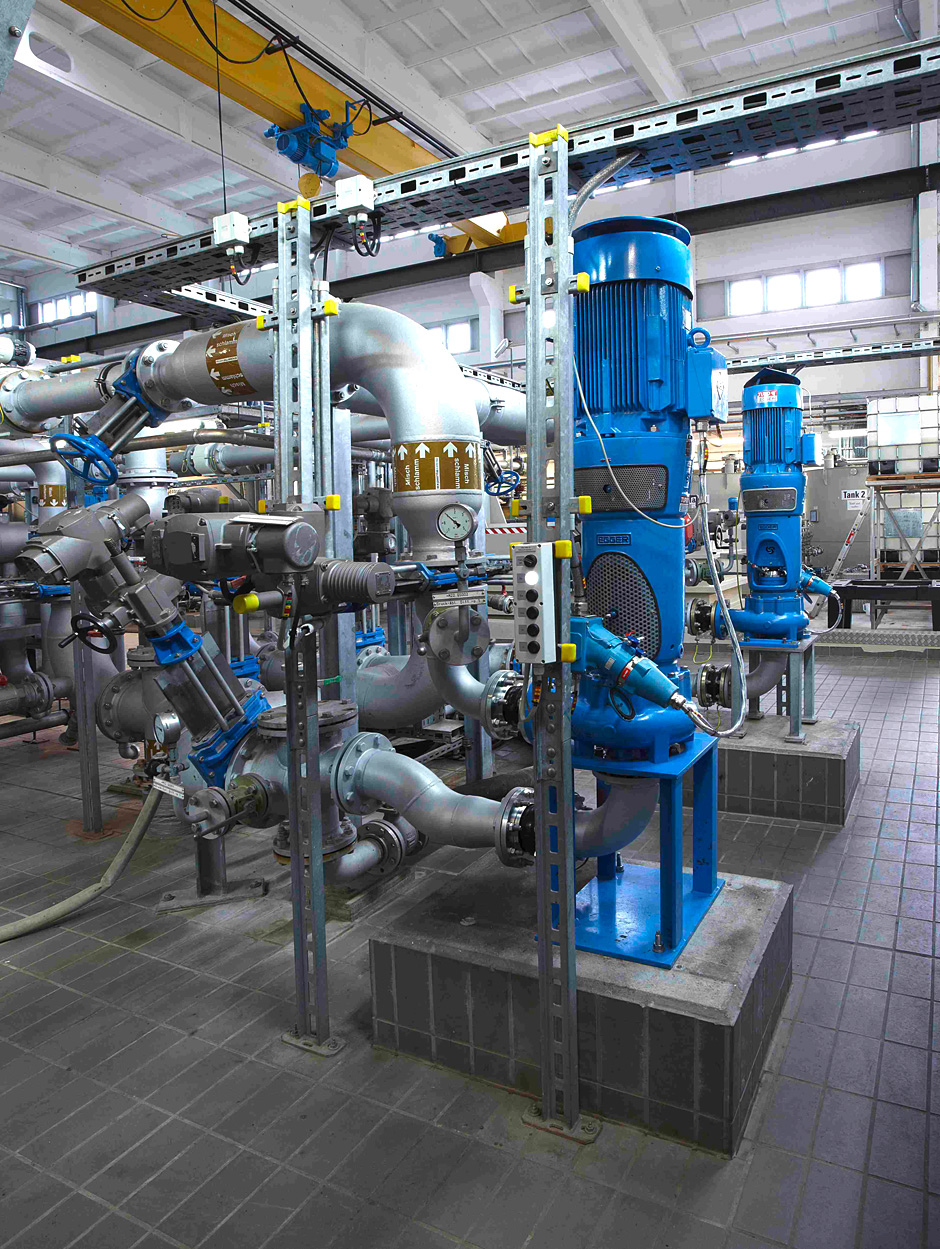

Return sludge pumps of type Egger EOS at the WWTP of Berlin-Wassmannsdorf

Iris® diaphragm control valves for the precise regulation of process air (WWTP Chemnitz)
